Swinging Access Gate

  • Heritage barriers and gates are ideal for restricting access into areas such as hotels and public car parks, private roads and industrial premises.
  • Height restrictors can be manufactured so they swing away when taller vehicles require access.
  • Finished in a choice of colour-coded enamel paint or in standard galvanised steel finish.
  • Signs and reflective tape can be added for additional safety.
  • Heritage offers evaluation of your premises, design, manufacture, installation (including civil works) and maintenance on all our barrier and gate

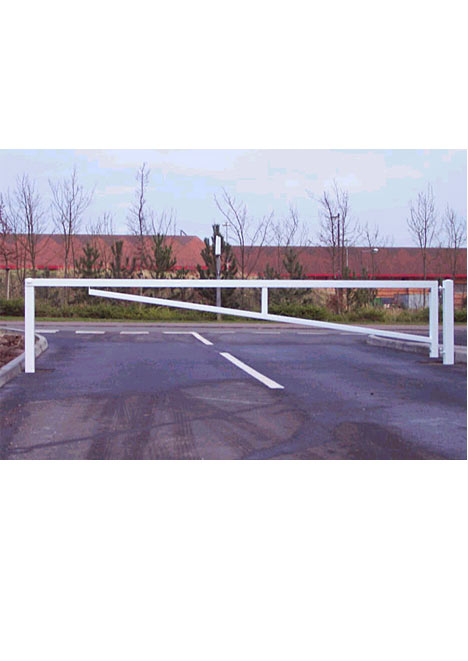

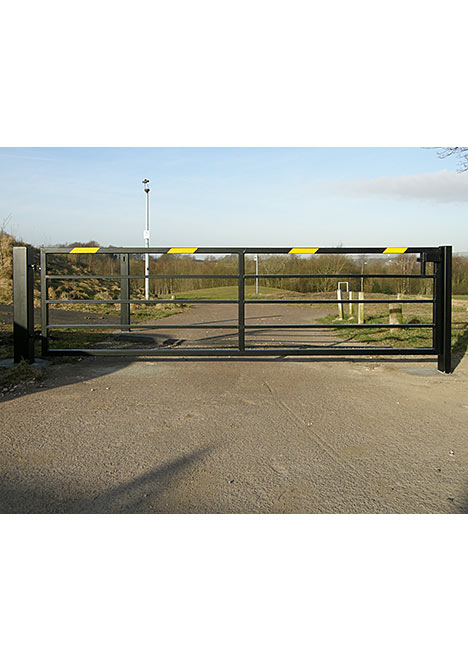

  • The Swinging Access Gate provides an ideal low cost solution to a wide variety of parking, road access and traffic management requirements for locations or situations where a fully automated barrier or gate entry system is either not a necessity or not cost effective.
  • Constructed from high quality steel hollow box section, the robust structure of this gate means it is ideally employed in unmanned areas or in areas where there is a requirement for low volume traffic control.
  • This durable, hard working access gate can be locked in either the open or closed position via an additional latch post or a padlock respectively providing excellent security to any specified area when required.

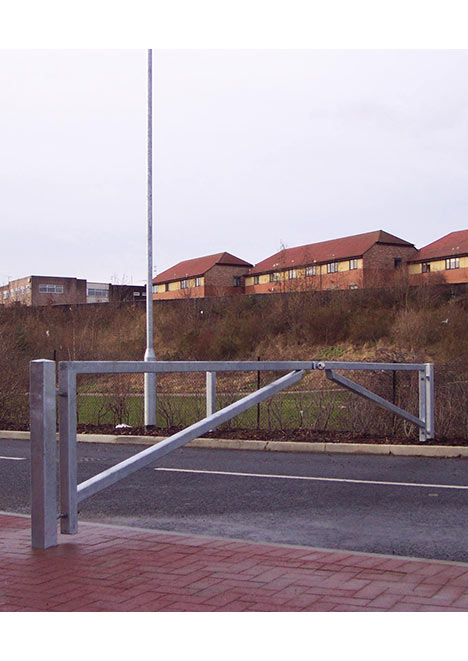

  • A double gate option is available for wider openings which can either be latched together (providing a large open entrance when gates are open) or to a single centre post (providing two separate entrances).

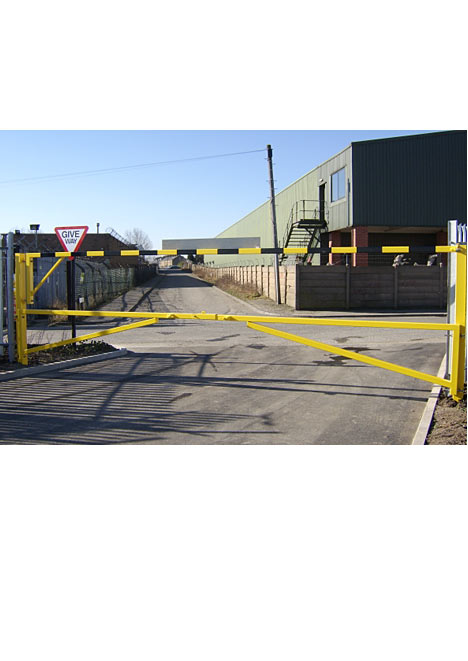

  • These types of gates may also be installed in combination with our Height Restriction Barriers.
  • Variants include static or opening height restriction barrier configurations and are applicable to both the single and double gate options.

Product Options

HSF949110Standard Single Swinging Access Gate - Gate Span: 3m to 6.5m; Sections: Gate 60 x 60 x 3mm; Post: 100 x 100 x 4mm.
HSF949210Heavy Duty Single Swinging Access Gate - Gate Span: 3m to 6.5m; Sections: Gate 80 x 80 x 5mm; Post: 150 x 150 x 5mm.
HSF949310Standard Double Swinging Access Gate - Gate Span: 6m to 13m; Sections: Gate 60 x 60 x 3mm; Post: 100 x 100 x 4mm.
HSF949410Heavy Duty Double Swinging Access Gate - Gate Span: 6m to 13m; Sections: Gate 80 x 80 x 5mm; Post: 150 x 150 x 5mm.

Installation & Fittings

Installation:

  • Posts may be surface mounted or sunken. Double gates may either be latched together (providing a large open entrance when gates are open). or to a single centre post (providing two separate entrances).

Fittings:

  • Comes complete with end rest tip support post, padlocks and fixings.
  • Optional extras: Can be supplied with additional latch post to lock in the open position.

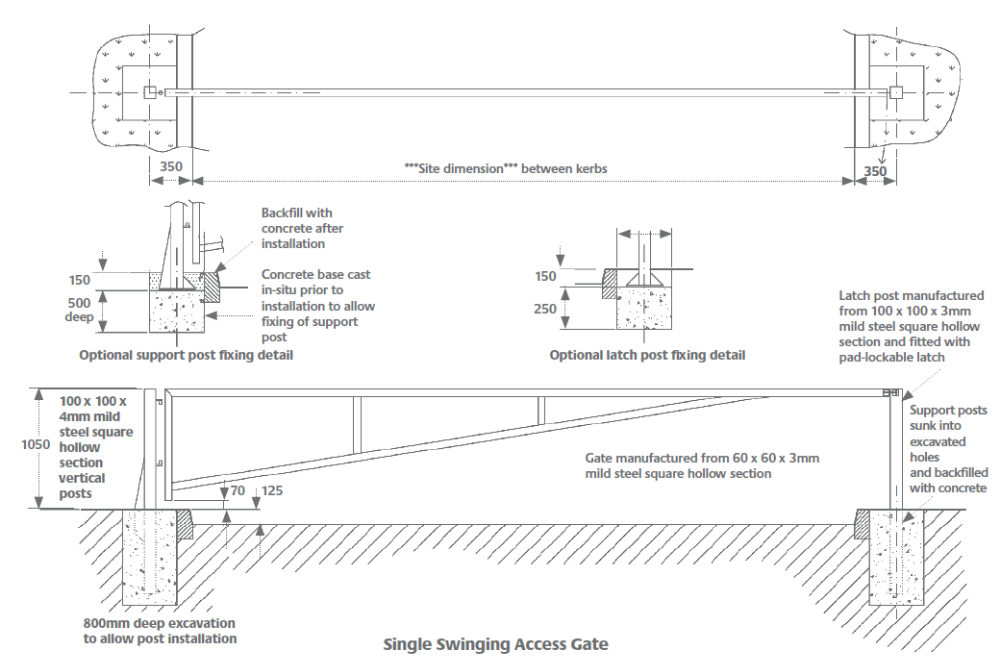

Single Swinging Access Gate - Installation Drawing
