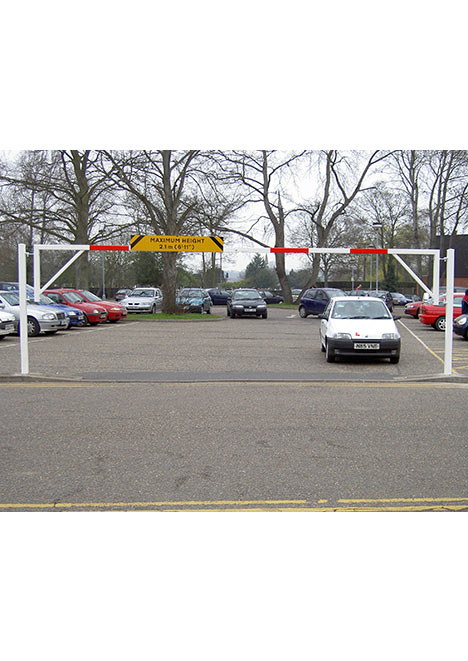

Double Height Restrictor

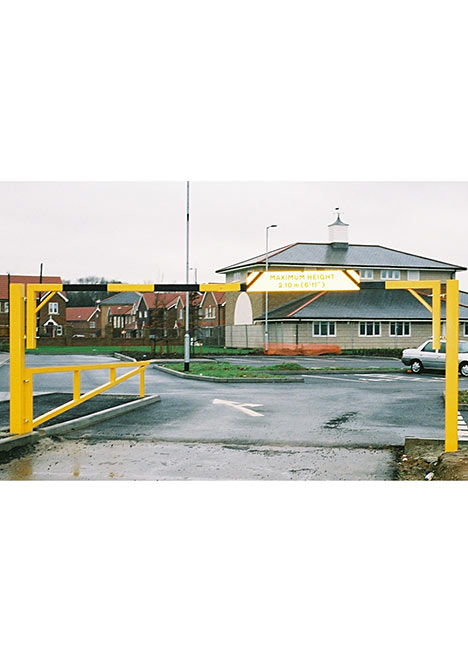

Double Height Restrictor with Single Access Gate

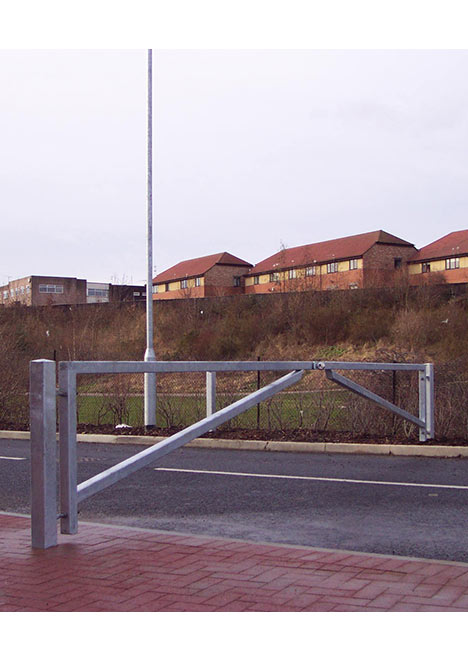

Double Gate

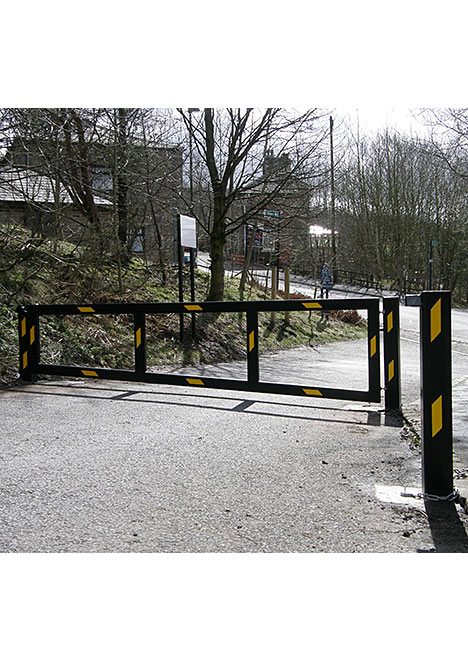

Bespoke Access Gate

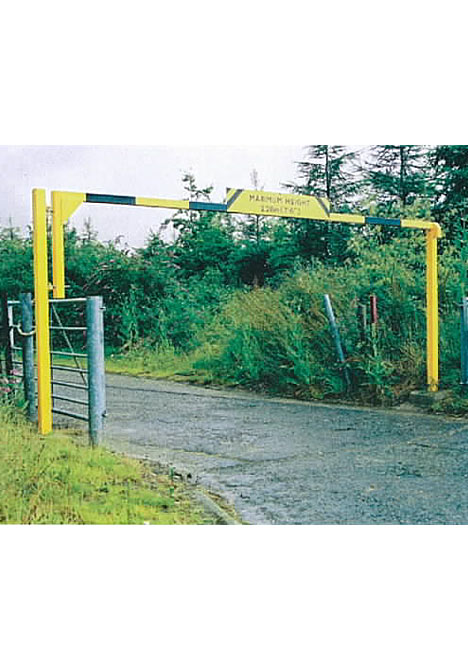

Access Gate with Single Height Restrictor

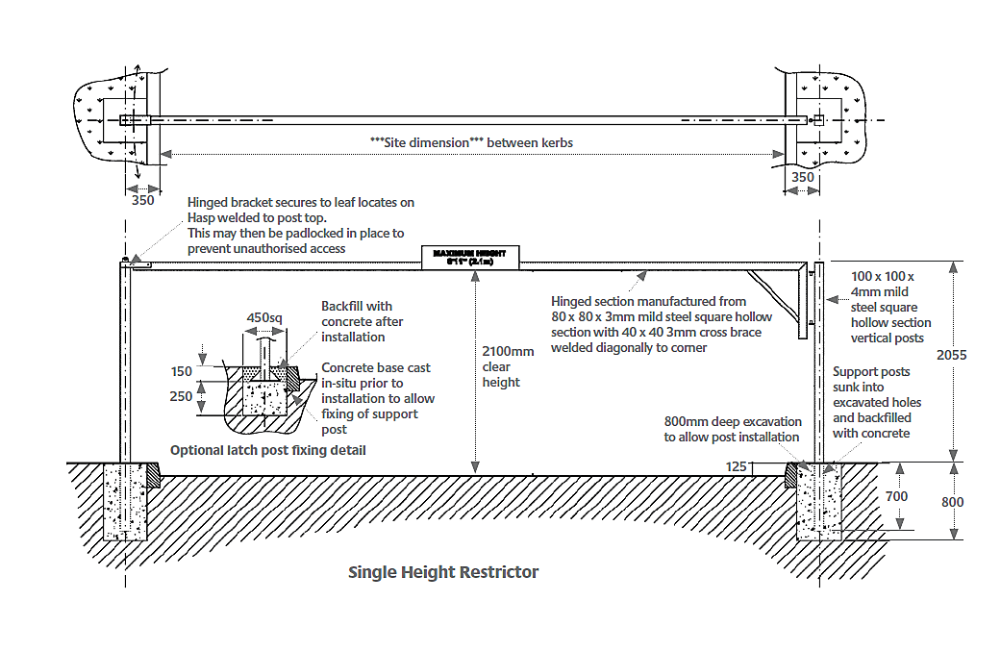

Single and Double Height Restrictors
- 100 x 100 x 4mm mild steel square hollow section vertical posts.
- 80 x 80 x 3mm mild steel hinged with 40 x 40 x 3mm cross brace welded corner section vertical posts.
- Standard height 2.1mtr (can be manufactured to customer specification).
- Spans for single is 3mtr to 6mtr and for double 6mtr to 13mtrs Can also be manufactured to customer specification.
- Comes complete with standard WARNING HEIGHT RESTRICTION signage.
- Posts may be surface mounted or sunken.
- Can be supplied with additional latch post to lock in the open position.
- Powder coated to customer specification or galvanised finishes available.
Product Options
| HSF949710 | Single Height Restrictor - Span: 3m to 6m; Standard height: 2.1m |
| HSF949810 | Double Height Restrictor - Span: 6m to 13m; Standard height: 2.1m |
| HSF949510 | Double Gates - Span: 6m to 13m; Standard height: 1.05m |
| HSF949610 | Bespoke Access Gate |
| HSF949910 | Bespoke Height Restrictor |
Product info
Installation
